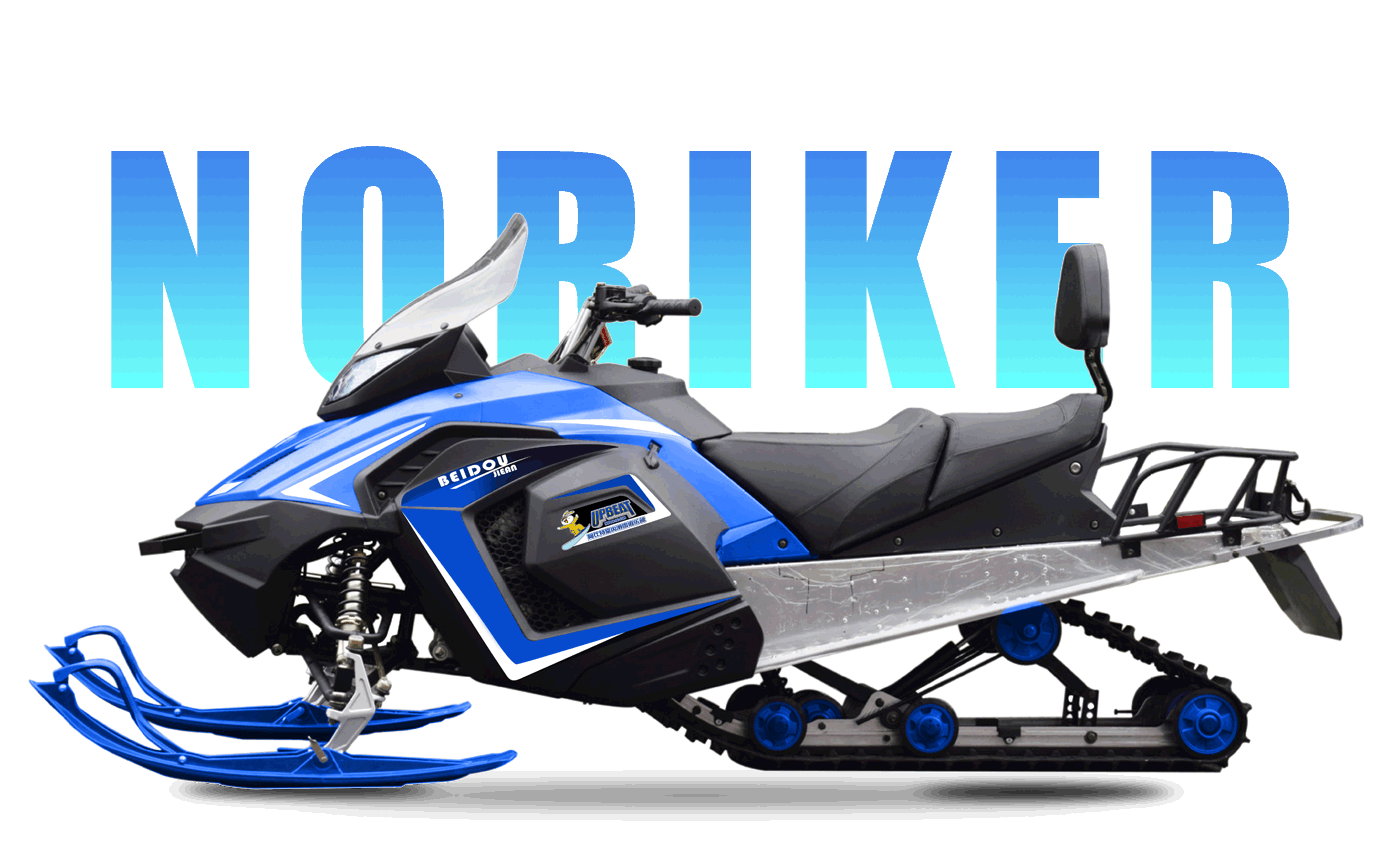

NORIKER
.png)
NEW ENERGY HIGH POWER
Automotive-grade intelligent power management system
-
-55℃
temperature value
-
80N·m
maximum torque
-
100km
maximum endurance mileage
-
2h
full charge
.jpg)
The first truly new energy snowmobile
In the era of big toys, Beidou new energy snow motorcycle represents the pioneer future of winter entertainment. The next fashion storm is coming!
Unparalleled features
Zero emissions, low noise.
Maximum mileage of 100 km for one charge.
High eficiency engine with maximum torque up to 80n.m.
Lightweight - industry leading ultra high power to weight ratio.
.jpg)
Different highlights
Charge anywhere using automobile standard equipment around the world. DC fast charge to 80% in 20 minutes, AC 240V L2 charge in 2 hours. An advanced thermal management system ensures that the battery is always in optimal condition, even when the temperature drops to -55C.
| Electric Snowmobile（SPECS) | |
| BDJA Vehicle structure and electrical system | |
| Engine type | PMSM （Permanent magnet synchronous motor） |
| Voltage platform（v Ah） | 60V150Ah |
| Rated power | 4.5kW/10.2hp/3000 |
| Max. torque | 65N·M |
| Max. horsepower RPM | 9kW/5500 rpm |
| Max. torque RPM | 5000 rpm |
| Starting system | Electric |
| Clutch type | CVT |
| Shift pattern | F-R |
| Endurance (km) | 80 |
| DRIVE SYSTEM | |
| Small sprocket number of teeth | 14 Teeth |
| Big sprocket number of teeth | 14 Teeth |
| Drive pulley number of teeth | 9 Teeth |
| Track nominal width | 380mm |
| Track nominal length | 2626mm |
| Track profile height | 29mm |
| BRAKE SYSTEM | |
| Brake system type | Hydraulic disc brake |
| Brake fluid | DOT 4 |
| SUSPENSION SYSTEM | |
| Front suspension type | Independent dual A-shape swing arm |
| Front shock absorber type | Adjustable spring shock absorber |
| Front suspension max. travel | 120 mm |
| Rear suspension type | Comfortable combined cradle |
| Center shock absorber type | Adjustable spring shock absorber |
| Rear shock absorber type | Adjustable spring shock absorber |
| Rear suspension max. travel | 100 mm |
| ELECTRICAL SYSTEM | |
| Headlight type | Halogen lamp |
| Headlight output | 35 W |
| Taillight type | LED |
| Taillight output | 1 W |
| Instrument type | LCD |
| STEERING SYSTEM | |
| Handle grip type | Heating grip |
| Throttle type | Special throttle for snowmobile (with heating function) |
| DIMENSIONS AND WEIGHT | |
| Vehicle overall dimensions (L × W × H) | 2670×1070×1070 mm |
| Dry weight | 200 kg |
| Ski stance | 950 mm |
| Climbing capability | ≥25° |
| Max speed (km/h) | 40 |
| APPEARANCE | |
| Plastic covers | Low temperature resistance PP |
| Optional Color | Red, Orange, Blue |
| ACCESSORIES | |
| Front bumper | Exist |
| Footrest | Aluminum alloy integral footrest |
