STALLION
产品详情
新能源 大功率
采用汽车级智能动力管理系统
-
132千米
最高时速
-
200千米
工况续航里程
-
2.5秒
0-50km/h加速
-
175毫米
离地间隙
设计理念
中量级别的跨骑车型,具备全地形多功能的属性,加上电驱动的加持,具有提速快、运行平稳、安静舒适的特点,将成为城市休闲娱乐的全新驾乘利器。
后摇臂与电机一体化设计
强后摇臂韧性,保证高速过弯时后轮的抓地力。
大功率电机
8kw中置直流水冷电机,最大功率达到18.5kw,最大扭矩85N.m,启动、加速、爬坡性能完美体现,0至百公里加速约8.8s。

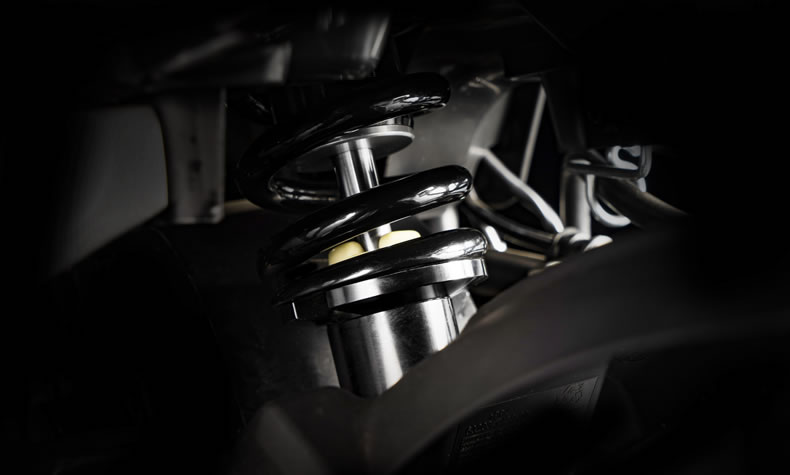

摩托级前后减震
赋予车身强悍的支撑性,保证高速行车平稳。
高集成数字液晶仪表
具备里程、电量、车速、电机转速、故障显示报警、水温显示等10余项功能,实现轻松的人机交互。
高能量锂电
96V64Ah高能高密度三元锂电池组,储存量大,容量衰减低,使用寿命更长。车辆在每小时50km的巡航状态下,续航能力轻松达200km。
变形金刚后大灯
造型凌厉、酷劲十足,尽显骑士风范。
E-RX1(SPECS) | |
BDJA Electric Drive-Chain System | |
BDJA Electric Drive-Chain System | 8000W Mid-motor |
96V64Ah Lithium battery | |
Maximum charging rate 15 A | |
FOC Vector closed-loop control, water-cooling | |
CAN communication protocol, GPS, Beidou, base station triple mode positioning, OTA online upgrade. | |
Braking system | F: Disc hydraulic |
R: Disc hydraulic | |
Front suspension system | Hydraulic telescopic forward reduction |
Rear suspension system | Four adjustable spring hydraulic double rear shock absorber, soft and hard according to the conditions of using. |
Lighting | Halogen headlamp, better lighting effect, turn signal lamp, rear tail lamp are LED, longer service life. |
Tires | Tubeless Tire Front: 100/80 -17 Rear: 120/80-17 |
Dashboard | Electric indicator, speed indicator, turn indicator, brake indicator, subtotal mileage, etc |
Front windshield | High strength PC |
BDJA Intelligence function | |
Alarm | Power off alarm, backup battery low power alarm, vibration anti-theft alarm, electronic fence, displacement alarm, overs peed alarm. |
Remote locking | The power supply of the whole vehicle can be cut off at any time through remote control by platform or mobile app. |
Tracking and Positioning | Regularly report location information to the platform or mobile app. |
Protection on battery under complex working conditions |
Intelligent control, such as automatic control of output power at low power or high temperature, ensures that the battery is always in good working condition and prolongs battery life |
Motor high Efficiency tuning | Based on excellent tuning, the motor has a wide efficient area, and the motor will always be in an efficient running state within the range of conventional speed |
Self Fault Diagnosis | The fault and health status of motor, electric control and battery are under monitoring all the time. In case of any problem, the instrument will immediately inform the user to make corresponding correct treatment |
BDJA Vehicle size specification and performance | |
Vehicle weight | 116kg (No Battery) |
Long × wide × high | 2190×820×1280mm |
Wheelbase | 1390mm |
Seat height | 800mm |
Number of seats | 2 |
Load weight | 150kg |
Maximum endurance | 200km @50km/h |
Minimum ground clearance | 150mm |
Minimum braking distance | ≤ 30 m |
Climbing ability | ≥ 22 ° |
Acceleration ability (0-50m) | 4.2s |
Top speed | 120km/h |
